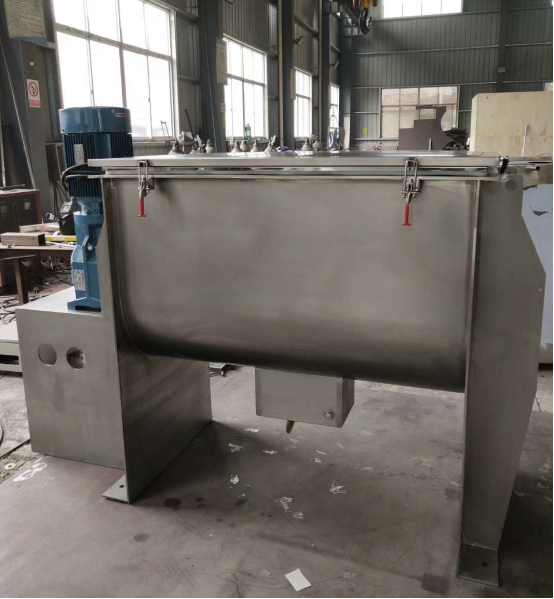

簡介(Brief)：
l 主要用于制藥、化工、食品等行業的混合。
Mainly applied by pharmacy, foodstuff and chemical industry.
l 適用于干顆粒、粉末和粘稠物料的混合，適合大中批量生產。
Suitable to blend dry granules, powders or pasty materials; suit to large or medium scale production.
l 不銹鋼制作，二層螺旋槳葉連續旋轉混合，外層螺旋將物料從兩側向中央?yún)R集，內層螺旋將物料從中央向兩側分流，使物料在混合槽內形成對流混合，從而達到高均勻度混合效果。
The machine is made with stainless steel. Two strip screw type paddle rotate continuously to blend the materials. The external screw gathers the materials inwards while the internal screw disperses the materials outwards with convective mixing inside the cavity to realize high uniformity mixed materials.
l 本機根據要求可配有加熱和噴霧功能。
Heating and spray system is configurable upon request.
l The machine is made with stainless steel. Two strip screw type paddle rotate continuously to blend the materials. The external screw gathers the materials inwards while the internal screw disperses the materials outwards with convective mixing inside the cavity to realize high uniformity mixed materials.
l 本機根據要求可配有加熱和噴霧功能。
Heating and spray system is configurable upon request.

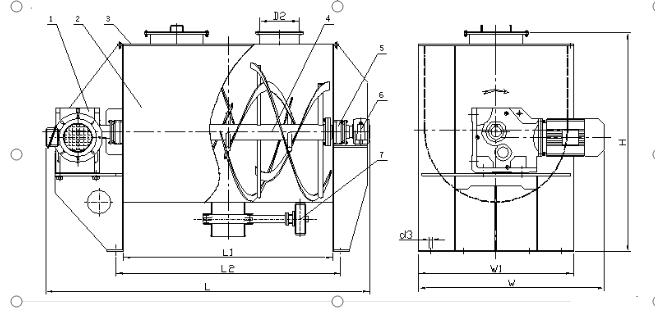

結構示意圖（Schematic diagram）：
1. 減速機(Reducer) 2.殼體(Drum) 3.筒蓋(Lid) 4.螺帶(Ribbon Paddle) 5.軸端密封(Sealer)
6.軸承(Bearing) 7.出料閥(Discharge Port)
技術參數(Technical Specifications)：
|
規格（m3） Norm |
0.3 | 0.5 | 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 15 | |
|
裝載系數 Loading coefficient |
0.4～0.6 | ||||||||||||
|
裝機功率kw Installed power |
4 | 5.5 | 11 | 18.5 | 22 | 22 | 30 | 37 | 45 | 55 | 55 | 75 | |
|
主軸轉速r/min Speed of Spindle |
66 | 66 | 41 | 41 | 33 | 33 | 26 | 26 | 26 | 20 | 20 | 17 | |
| 進料口尺寸 Size of feeding port | D1 | 1-φ500 | 1-φ500 | 1-φ500 | 1-φ500 | 1-φ500 | 1-φ500 | 1-φ500 | 1-φ500 | 1-φ500 | 1-φ500 | 1-φ500 | 1-φ500 |
| D2 | 1-φ350 | 1-φ350 | 1-φ350 | 1-φ350 | 1-φ350 | 2-φ300 | 2-φ300 | 2-φ300 | 2-φ300 | 2-φ300 | |||
|
出料口尺寸 Size of discharge port |
300×400 | 500×90 | 500×90 | 500×90 | 500×90 | 500×90 | 500×90 | 500×90 | 500×90 | 500×90 | 500×90 | 500×90 | |
|
外形尺寸 Out-form Dimension |
L | 1550 | 1672 | 1970 | 2480 | 2880 | 3026 | 3518 | 3905 | 4398 | 4500 | 4486 | 5363 |
| W | 1005 | 1142 | 1437 | 1561 | 1895 | 1947 | 1945 | 1683 | 1960 | 2070 | 2250 | 2250 | |
| H | 935 | 1300 | 1500 | 1830 | 2080 | 2235 | 2230 | 2286 | 2316 | 2667 | 2737 | 3070 | |
| L1 | 980 | 1000 | 1230 | 1690 | 1910 | 2040 | 2418 | 2800 | 2800 | 3200 | 3200 | 4000 | |
| L2 | 1060 | 1200 | 1350 | 1840 | 2060 | 2280 | 2618 | 3000 | 3030 | 3430 | 3400 | 4230 | |
| W1 | 650 | 808 | 1010 | 1210 | 1412 | 1513 | 1636 | 1682 | 1960 | 2070 | 2266 | 2250 | |
| d3 | 6-φ18 | 6-φ26 | 6-φ26 | 6-φ26 | 6-φ26 | 6-φ26 | 6-φ26 | 6-φ26 | 6-φ26 | 8-φ26 | 12-φ22 | 8-φ26 | |
|
設備重量kg Weight |
780 | 955 | 1400 | 2500 | 3300 | 3600 | 4620 | 5300 | 6800 | 8900 | 9520 | 9950 | |
Parameters above are for standard machines. For non-standard ones please refer to the specific drawings.
