一．設備概述（）

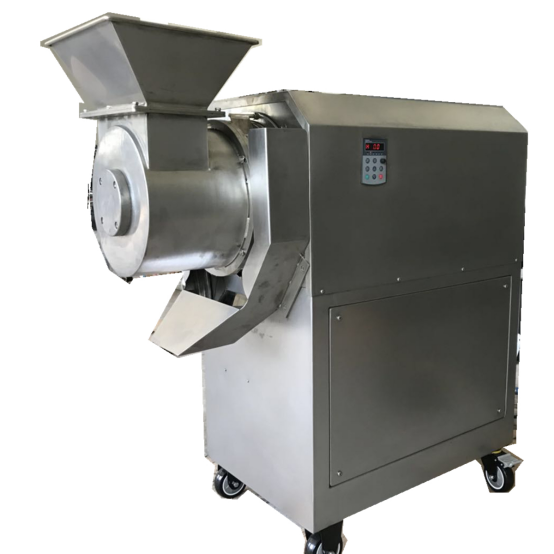

本機是一種將潮濕粉體混合料，在制粒機旋壓滾輪擠壓下，徑向通過篩網擠出合格顆粒的一種專用設備。 該專用設備主要適用于醫藥，化工，食品，等行業中制造各種規格的顆粒，成品經干燥后可制成各種制品。This machine is a kind of special equipment that extrudes the wet powder mixture through the screen radially through the screen under the extrusion of the spinning roller of the granulator. This special equipment is mainly suitable for the manufacture of various specifications of particles in the pharmaceutical, chemical, food, and other industries. The finished product can be made into various products after being dried.
二．設備特點（Features）
1本機拋棄以往旋轉制粒機采用鑄造槳葉擠壓的形式，采用活動滾輪，減少造粒網的摩擦增加其壽命，同時滾輪轉動壓出物料使物料更加緊密。1 This machine abandons the previous rotary granulator and adopts the form of casting blade extrusion. It adopts movable rollers to reduce the friction of the granulating net and increase its life. At the same time, the rollers rotate to extrude the materials to make the materials more compact.

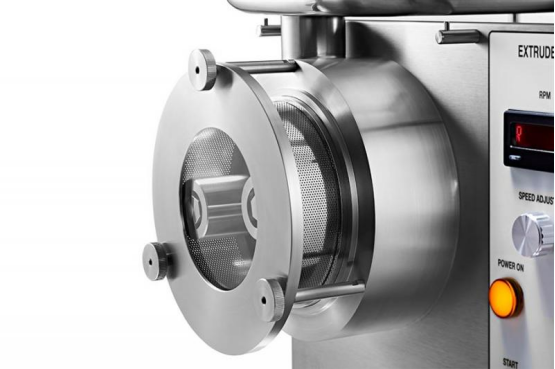

2本機采用加厚型特殊工藝造粒網，不使用傳統沖孔網，篩網壽命大大延長，對于容易造粒的物料壽命可達一年，造粒網有整體式和抱箍式兩種。本機采用水平螺旋喂料至滾輪擠壓出顆粒的，再由鏟刀根據物料顆粒的要求設置鏟料距離從而下料。和傳統的旋轉制粒機相比，清洗可以直接用高壓水槍清洗，方便簡單而不會出現傳動軸承應為進水而出現銹死的情況。加料口與各制粒裝置的結構是依據安裝，清洗，調整，使用方便的原則設計，各方面與物料接觸部件均為優秀不銹鋼制成，杜絕污染，保證了制品的清潔衛生，符合GMP和FDA要求。2 This machine adopts a thickened special process granulation mesh, without using traditional punching mesh, the life of the screen is greatly extended, and the life of the material that is easy to granulate can be up to one year. The granulation mesh has two types: integral type and hoop type. . This machine adopts horizontal screw feeding to the roller to squeeze out the particles, and then the shovel blade sets the shovel distance according to the requirements of the material particles to discharge the material. Compared with the traditional rotary granulator, the cleaning can be directly cleaned with a high-pressure water gun, which is convenient and simple and will not cause the transmission bearing to be rusted due to water ingress. The structure of the
feeding port and each granulating device is designed according to the principle of installation, cleaning, adjustment, and convenient use. All parts in contact with the material are made of excellent stainless steel to prevent pollution and ensure the cleanliness of the product. It is in line with GMP and FDA. Claim.
技術參數（Technical Parameters）
| 型號Model | WX-160 | WX-300 | WX-350 | WX-500 |
| 制粒直徑 Granulating Size(mm) | 0.5-5 | 0.5-5 | 0.5-10 | 0.5-10 |
| 重量 Weight(kg) | 140 | 550 | 850 | 1700 |
| 電機功率 Power(KW) | 2.2 | 7.5 | 11 | 22 |
| 生產能力 Capacity(kg/h) | 30-140 | 120-800 | 250-1050 | 650-1800 |
| 外形尺寸Overall Size(mm) | 650×480×800 | 900×580×1100 | 1100*750*1200 | 1500*1000*1350 |
